Solving Inverse Problems in Remote Sensing #

README #

• To get all the material for the labs, clone the following git repo : https://github.com/y-mhiri/hsi_unmixing_lab.
• You can follow this lab in multiple level of difficulty

1. The easiest way : Answer only the theoretical question and follow the notebooks in notebooks/ to do the programming
2. Intermediary level : Implement your own code to answer the lab questions using the helper functions you’ll find in src/
3. Expert level : I guess you don’t even need to clone the git repo…

If anything don’t hesitate to reach me at yassine.mhiri@univ-smb.fr.

Introduction #

In this lab session, we will explore one of the many applications of numerical optimization, namely solving inverse problems. Inverse problems constitute a sub-field of applied mathematics with many applications in real-world data analysis. In this lab, you will work with hyperspectral images, commonly used in remote sensing.

We will begin with an introduction to hyperspectral images and derive a formulation of the hyperspectral unmixing problem. We will then express the inverse problem through an objective function to optimize. In the second part of the lab, we will experiment with multiple algorithms to solve the optimization problem and analyze their performance.

Hyperspectral unmixing is a fundamental problem in remote sensing that involves decomposing mixed pixel spectra into their constituent materials (endmembers) and their respective proportions (abundances). This problem is inherently an inverse problem where we seek to recover the underlying components from observed mixed signals.

As a bonus, we will explore blind hyperspectral unmixing where both endmembers and abundances are unknown, making the problem significantly more challenging.

Learning Objectives #

By the end of the session, you should be able to:

• Derive a data model and objective function to solve an inverse problem
• Implement descent algorithms to solve multi-objective optimization problems
• Handle constrained optimization problems using Lagrange multipliers and projection methods
• Benchmark optimization algorithms and measure their performance
• Manipulate real-world hyperspectral data in Python
• Understand the relationship between physical constraints and mathematical optimization

I - Modelization and Problem Setup #

1. What is a Hyperspectral Image? #

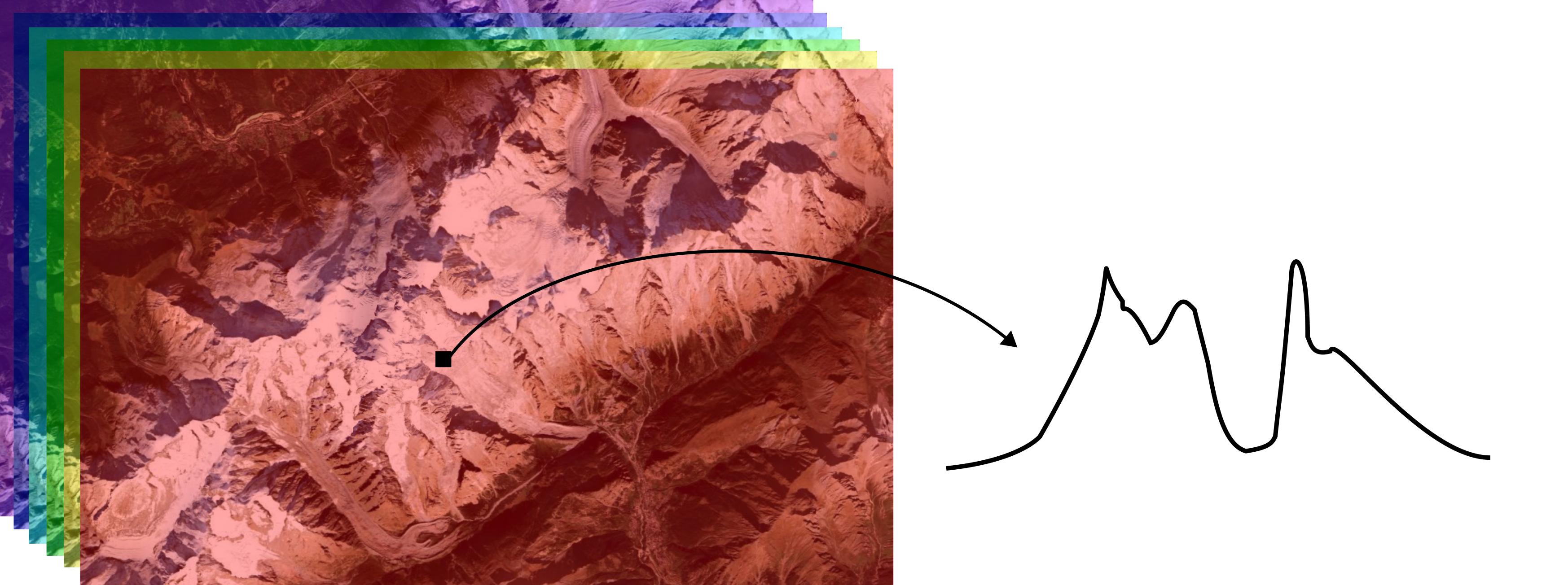

A hyperspectral image (HSI) captures information across a wide range of the electromagnetic spectrum. Unlike traditional images that capture data in three bands (red, green, and blue), hyperspectral images can capture data in hundreds of contiguous spectral bands. This allows for detailed spectral analysis and identification of materials in remote sensing based on their spectral signatures.

Each pixel in a hyperspectral image contains a complete spectrum, which can be thought of as a “fingerprint” of the materials present in that pixel. The spectral dimension provides rich information about the chemical and physical properties of the observed scene.

In this lab session, we will work with an open dataset for hyperspectral data analysis: the Pavia University HSI dataset. This dataset is widely used in the remote sensing community and contains agricultural fields with different crop types.

Tasks:

1. Open the PaviaU dataset. You can either use the helper function provided or use the loadmatfunction from scipy.io.

2. What is the size of the image and how many spectral bands does the image contain?

3. Use imshow or the provided helper functions to display a few band images of the HSI cube at different wavelengths. Try displaying bands at different spectral regions (e.g., visible, near-infrared, short-wave infrared).

4. Load and display the ground truth classification map. This shows the different crop types present in the scene.

5. Extract and plot the mean spectrum of the first three classes from the ground truth. What differences do you observe between the spectral signatures?

6. Save the matrix formed by the spectra of all the classes in a .npy using np.save

2. The Spectral Unmixing Linear Model #

In remote sensing, hyperspectral images of the Earth are composed of pixels that represent mixed spectral signatures of various materials. Due to the limited spatial resolution of sensors, each pixel often contains multiple materials. The spectrum observed at each pixel is the result of multiple constituent spectra called endmembers.

Spectral unmixing consists of estimating the per-pixel abundances of each endmember, giving insight into the various constituents of the observed field. This is particularly important in applications such as:

• Agricultural monitoring (crop type identification)
• Environmental monitoring (vegetation health assessment)
• Geological surveys (mineral identification)
• Urban planning (land cover classification)

It is commonly accepted to model the pixel spectra by a linear mixing model as follows:

$$ \mathbf{y}_p = \sum_{k=1}^K a_{kp} \mathbf{s}_k + \mathbf{n}_p $$

where:

• $\mathbf{y}_p \in \mathbb{R}^m$ is the observed spectrum at pixel $p$ (with $m$ spectral bands)
• $a_{kp} \in \mathbb{R}$ is the abundance (proportion) of the $k$-th endmember at pixel $p$
• $\mathbf{s}_k \in \mathbb{R}^m$ is the spectral signature of the $k$-th endmember
• $\mathbf{n}_p \in \mathbb{R}^m$ represents the noise at pixel $p$
• $K$ is the number of endmembers

The linear mixing model assumes that (i) the observed spectrum is a linear combination of endmember spectra, (ii) there are no multiple scattering effects and (iii) the endmembers are spectrally distinct.

Tasks:

1. Derive a matrix formulation of the linear mixing model in which images are vectorized. Define clearly:
   • The data matrix $\mathbf{Y} \in \mathbb{R}^{m \times n}$ where $n$ is the number of pixels
   • The endmember matrix $\mathbf{S} \in \mathbb{R}^{m \times K}$
   • The abundance matrix $\mathbf{A} \in \mathbb{R}^{K \times n}$
   • The noise matrix $\mathbf{N} \in \mathbb{R}^{m \times n}$

2. What are the physical constraints that should be imposed on the abundance matrix $\mathbf{A}$? Justify your answer.

3. Formulation of the Inverse Problem #

The inverse problem in hyperspectral unmixing consists of estimating the endmember matrix $\mathbf{S}$ and the abundance matrix $\mathbf{A}$ from the observed data matrix $\mathbf{Y}$. This is essentially a matrix factorization problem.

The basic objective function for this optimization problem can be written as:

$$ \min_{\mathbf{A}, \mathbf{S}} \Vert\mathbf{S}\mathbf{A} - \mathbf{Y}\Vert_F^2 $$

where $\Vert\cdot\Vert_F^2$ is the squared Frobenius norm of the matrix, defined as: $$ \Vert\mathbf{X}\Vert_F^2 = \sum_{i,j} x_{ij}^2 = \text{tr}(\mathbf{X}^T\mathbf{X}) $$

Tasks:

1. Explain why this is called an inverse problem. What makes it challenging compared to a forward problem?

2. Is the objective function convex in both $\mathbf{A}$ and $\mathbf{S}$ simultaneously? Justify your answer.

II - Solving the Unconstrained Least Squares Inverse Problem #

An inverse problem involves determining the input or parameters of a system from its observed output. In the context of spectral unmixing, the inverse problem is to estimate the endmember spectra and their abundances from the observed hyperspectral data.

We will mostly consider the case where the endmembers $\mathbf{S}$ are known (e.g., from a spectral library or field measurements). In this case, we only need to estimate the abundance matrix $\mathbf{A}$.

1. Unconstrained Least Squares Solution #

When the endmembers are known, the problem becomes a linear least squares problem for each pixel:

$$ \min_{\mathbf{A}} \Vert\mathbf{S}\mathbf{A} - \mathbf{Y}\Vert_F^2 $$

Tasks:

1. Derive the analytical solution for the unconstrained least squares problem. Show that the optimal abundance matrix is given by: $$ \mathbf{A}^* = (\mathbf{S}^T\mathbf{S})^{-1}\mathbf{S}^T\mathbf{Y} $$

2. Under what conditions is this solution unique? What happens if $\mathbf{S}^T\mathbf{S}$ is not invertible?

3. Implement the unconstrained least squares solution as a lambda function or regular function.

2. Performance Evaluation #

To evaluate the quality of spectral unmixing results, we need appropriate metrics that measure both spectral and spatial accuracy.

Tasks:

1. Implement a function that evaluates the following evaluation metrics:
   • Spectral Angle Mapper (SAM): Measures the angle between reconstructed and original spectra.
   • Root Mean Square Error (RMSE): Measures the pixel-wise reconstruction error.
   • SSIM : Measure a perceptual similiarity between images.

You can either use the helper function implemented in the repo or use implementation for external libraries (scipy, sklearn).

2. Implement a reconstruction and visualization function that:

   • Reconstructs the hyperspectral image from estimated abundances
   • Displays RGB composite images (original vs. reconstructed)
   • Shows abundance maps for each endmember
   • Computes and displays the evaluation metrics

3. Apply your unconstrained least squares solution to the Pavia University dataset:

   • Use the mean spectra of the first 3-5 classes as endmembers
   • Compute the abundance maps
   • Evaluate the reconstruction quality

4. Comment on the results. What do you observe about the abundance values? Are they physically meaningful?

III - Solving Constrained Least Squares Inverse Problems #

Given the physical interpretation of the spectral linear mixing model, a set of constraints should be added to the optimization problem to ensure physically meaningful solutions.

Tasks:

1. Propose a set of equality and/or inequality constraints to ensure the interpretability of the solutions. Explain the physical meaning of each constraint.

As you must notice, this makes the optimization problem more difficult to solve. In the next parts of the lab, we will derive methods to solve the relaxed version of the fully constrained problem.

1. Sum-to-One Constrained Least Squares #

Let’s first consider only the sum-to-one constraint. The optimization problem becomes:

$$ \begin{align} \min_{\mathbf{A}} &\quad \Vert\mathbf{S}\mathbf{A} - \mathbf{Y}\Vert_F^2 \ \text{subject to} &\quad \mathbf{1}^T\mathbf{A} = \mathbf{1}^T \end{align} $$

where $\mathbf{1}$ is a vector of ones.

Tasks:

1. Derive the Lagrangian of the constrained optimization problem

2. Compute the optimal solution by setting the gradients to zero.

3. Derive the closed-form expression for $\lambda^*$ and the final solution.

4. Implement the sum-to-one constrained solution and test it on the Pavia University dataset.

5. Display the results: RGB composite, abundance maps, and compute evaluation metrics. Comment on the improvements compared to the unconstrained solution.

2. Non-Negativity Constrained Least Squares #

Now consider only the non-negativity constraints:

$$ \begin{align} \min_{\mathbf{A}} &\quad \Vert\mathbf{S}\mathbf{A} - \mathbf{Y}\Vert_F^2 \ \text{subject to} &\quad \mathbf{A} \geq 0 \end{align} $$

This is a quadratic programming problem with inequality constraints. The analytical solution is more complex, but we can use iterative methods.

What is a Quadratic Programming Problem? #

A Quadratic Programming Problem is an optimization problem where:

• The objective function is quadratic in the decision variables
• The constraints are linear (equality and/or inequality constraints)

The general form of a QPP is: $$ \begin{align} \min_{\mathbf{x}} &\quad \frac{1}{2}\mathbf{x}^T\mathbf{Q}\mathbf{x} + \mathbf{c}^T\mathbf{x} \ \text{subject to} &\quad \mathbf{A}_{eq}\mathbf{x} = \mathbf{b}_{eq} \ &\quad \mathbf{A}_{ineq}\mathbf{x} \leq \mathbf{b}_{ineq} \end{align} $$

In our case:

• $\mathbf{Q} = \mathbf{S}^T\mathbf{S}$ (positive semi-definite matrix)
• The constraint $\mathbf{A} \geq 0$ represents simple bounds
• QPPs are convex when $\mathbf{Q}$ is positive semi-definite, ensuring a unique global minimum

Projected Gradient Algorithm #

Since analytical solutions for QPPs with inequality constraints can be complex, we use iterative methods. The projected gradient algorithm is particularly effective for problems with simple constraints like non-negativity.

The algorithm works as follows:

1. Gradient Step: Take a standard gradient descent step $$\tilde{\mathbf{A}}^{(k+1)} = \mathbf{A}^{(k)} - \alpha \nabla f(\mathbf{A}^{(k)})$$

2. Projection Step: Project the result onto the feasible set $$\mathbf{A}^{(k+1)} = \text{Proj}_{\mathcal{C}}(\tilde{\mathbf{A}}^{(k+1)})$$

where $\mathcal{C}$ is the constraint set and $\text{Proj}_{\mathcal{C}}(\cdot)$ is the orthogonal projection operator.

For our problem:

• The gradient is: $\nabla f(\mathbf{A}) = 2\mathbf{S}^T(\mathbf{S}\mathbf{A} - \mathbf{Y})$
• The projection onto the non-negative orthant is: $\text{Proj}_{\mathbb{R}_+}(\mathbf{x})_i = \max(0, x_i)$

The projection step ensures that all iterates remain feasible while the gradient step minimizes the objective function.

Tasks:

1. Derive the gradient of the objective function $f(\mathbf{A}) = \Vert\mathbf{S}\mathbf{A} - \mathbf{Y}\Vert_F^2$ with respect to $\mathbf{A}$.

2. Implement a projected gradient descent algorithm to solve the non-negativity constrained problem.

3. Apply the non-negativity constrained method to the Pavia University dataset. Be carefull on how you choose the descent step size. Compare results with previous methods.

3. Fully Constrained Least Squares #

Finally, let’s combine both constraints:

$$ \begin{align} \min_{\mathbf{A}} &\quad \Vert\mathbf{S}\mathbf{A} - \mathbf{Y}\Vert_F^2 \ \text{subject to} &\quad \mathbf{1}^T\mathbf{A} = \mathbf{1}^T \ &\quad \mathbf{A} \geq 0 \end{align} $$

The Simplex and Simplex Projection #

The set defined by the intersection of the sum-to-one constraint and the non-negativity constraint defines the unit simplex.

Definition: The unit simplex in $\mathbb{R}^K$ is defined as: $$\Delta^{K-1} = \left\{\mathbf{x} \in \mathbb{R}^K : \sum_{i=1}^K x_i = 1, \forall i \leq K \ x_i \geq 0 \right\}$$

Geometric Interpretation:

• In 2D ($K=2$): The simplex is a line segment from $(1,0)$ to $(0,1)$
• In 3D ($K=3$): The simplex is a triangle with vertices at $(1,0,0)$, $(0,1,0)$, and $(0,0,1)$
• In general: The simplex is a $(K-1)$-dimensional polytope

Physical Meaning: In our context, each column of $\mathbf{A}$ (representing abundances for one pixel) must lie on the simplex, ensuring that abundances are non-negative and sum to one.

Projection onto the Simplex #

The projection of a point $\mathbf{v}$ onto the simplex is the closest point in the simplex to $\mathbf{v}$ in the Euclidean sense: $$\text{Proj}_{\Delta^{K-1}}(\mathbf{v}) = \arg\min_{\mathbf{x} \in \Delta^{K-1}} \Vert\mathbf{x} - \mathbf{v}\Vert_2^2$$

1. Implement a function that perform projection on the simplex:

2. Modify the previous projected gradient descent algorithm to the Fully Constrained Least Square problem.

3. Apply the fully constrained method to the Pavia University dataset.

4. Compare all methods (unconstrained, sum-to-one, non-negativity, fully constrained) in terms of:

   • Reconstruction quality (SAM, RMSE, SSIM)
   • Physical meaningfulness of abundances
   • Computational efficiency
   • Visual quality of abundance maps

5. Analyze the convergence behavior of the different projected gradient algorithms. Plot the objective function value vs. iteration number.

IV - Blind Hyperspectral Unmixing (Bonus) #

This section is intended for advanced students who have successfully completed the previous sections.

In the previous sections, we assumed that the endmembers were known. In practice, this is often not the case, and we need to estimate both the endmembers and abundances simultaneously. This is called blind hyperspectral unmixing or blind source separation.

The optimization problem becomes:

$$ \begin{align} \min_{\mathbf{A}, \mathbf{S}} &\quad \Vert\mathbf{S}\mathbf{A} - \mathbf{Y}\Vert_F^2 \ \text{subject to} &\quad \mathbf{1}^T\mathbf{A} = \mathbf{1}^T \ &\quad \mathbf{A} \geq 0 \ &\quad \mathbf{S} \geq 0 \end{align} $$

This problem is significantly more challenging because:

• It is non-convex in the joint variables $(\mathbf{A}, \mathbf{S})$
• Multiple local minima exist
• The solution is not unique (scaling ambiguity)

Block Coordinate Descent Algorithm #

Since the problem is not jointly convex, but is convex in each variable when the other is fixed, we can use Block Coordinate Descent (BCD). This approach alternates between optimizing blocks of variables while keeping others fixed.

Algorithm Structure:

1. Initialize $\mathbf{S}^{(0)}$ and $\mathbf{A}^{(0)}$
2. For $k = 0, 1, 2, \ldots$ until convergence:

   • Fix $\mathbf{S} = \mathbf{S}^{(k)}$ and solve for $\mathbf{A}^{(k+1)}$: $$\mathbf{A}^{(k+1)} = \arg\min_{\mathbf{A}} \Vert\mathbf{S}^{(k)}\mathbf{A} - \mathbf{Y}\Vert_F^2 \quad \text{s.t. } \mathbf{1}^T\mathbf{A} = \mathbf{1}^T, \mathbf{A} \geq 0$$

   • Fix $\mathbf{A} = \mathbf{A}^{(k+1)}$ and solve for $\mathbf{S}^{(k+1)}$: $$\mathbf{S}^{(k+1)} = \arg\min_{\mathbf{S}} \Vert\mathbf{S}\mathbf{A}^{(k+1)} - \mathbf{Y}\Vert_F^2 \quad \text{s.t. } \mathbf{S} \geq 0$$

Key Insight: Each subproblem is a constrained least squares problem that we know how to solve from Section III!

Tasks:

1. Analyze the subproblems:

   • What type of optimization problem is the $\mathbf{A}$-subproblem? Which method from Section III can you use?
   • What type of optimization problem is the $\mathbf{S}$-subproblem? How does it differ from the abundance estimation?

2. Implement the Block Coordinate Descent algorithm:

3. Initialization strategies: Implement at least two initialization methods:

   • Random initialization: Random positive values with proper normalization
   • Supervised initialization: Use the endmembers provided on section III.

4. Convergence analysis:

   • Implement a convergence criterion based on the relative change in objective function
   • Plot the objective function value vs. iteration number
   • Compare convergence behavior with different initializations

5. Algorithm analysis:

   • What are the main limitations of this approach?
   • How sensitive is the algorithm to initialization?
   • What happens when the number of endmembers $K$ is incorrectly specified?

Limitations and Advanced Methods #

The Block Coordinate Descent approach presented here provides a good introduction to blind unmixing, but it has several limitations:

• Local minima: The algorithm may converge to poor local solutions
• Initialization dependence: Results can vary significantly with different initializations
• Scaling ambiguity: Solutions are not unique up to scaling factors
• Slow convergence: Simple alternating optimization can be slow

Advanced methods exist that address these limitations and provide better performance:

• Non-negative Matrix Factorization (NMF) with multiplicative updates
• Independent Component Analysis (ICA) for statistical independence …

These advanced methods often incorporate additional prior knowledge, regularization terms, or sophisticated optimization techniques to achieve more robust and accurate unmixing results.
